1.11. 电子日历

1.11.1. 模块介绍

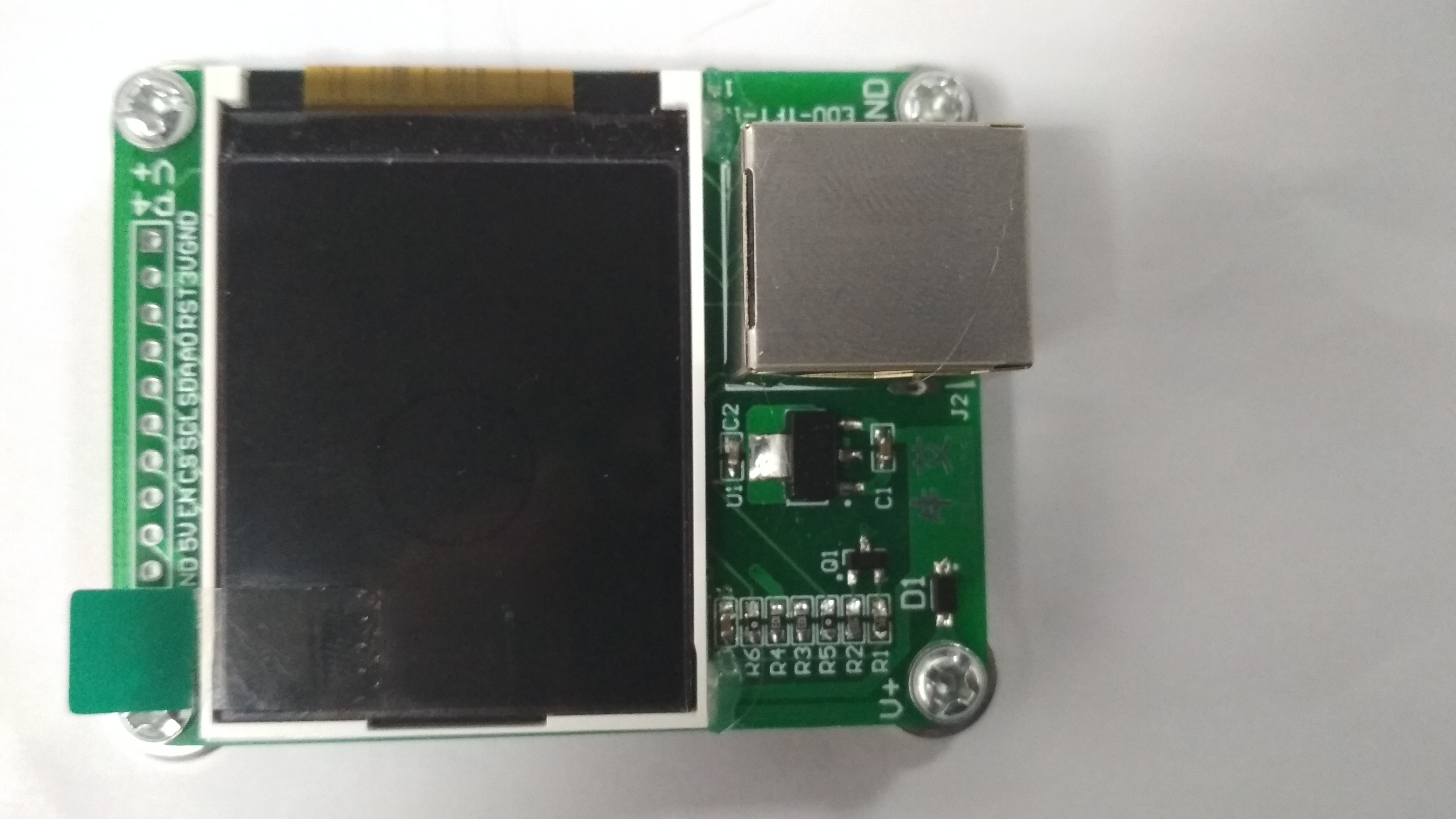

此实验使用EDU-TFT-1.8模块

*实物图：

EDU-TFT-1.8模块

../_images/lcd1.jpg

1.11.2. 编程学习

打开main.py文件开始编写代码:

导入库文件:

import lcd_show
import font
from lcd_show import *
from font import *
import pyb
from pyb import Pin
import time
import utime
from random import randint
import framebuf

之后开始初始化引脚，代码为：

usrspi = USR_SPI(scl=Pin('X6',Pin.OUT_PP), sda=Pin('X7', Pin.OUT),dc=Pin('X8', Pin.OUT))
disp = DISPLAY(usrspi,cs=Pin('X5', Pin.OUT),res=Pin('X4', Pin.OUT),led_en=Pin('X3', Pin.OUT))
disp.clr(disp.WHITE)

设置完毕后，即可编写函数实现日历效果的效果，代码如下：

画日历背景：
disp.putstr_back(0,2,"01",disp.BLACK,disp.BLUE)
disp.putstr_back(3,2,"02",disp.BLACK,disp.BLUE)
disp.putstr_back(6,2,"03",disp.BLACK,disp.BLUE)
disp.putstr_back(9,2,"04",disp.BLACK,disp.BLUE)
disp.putstr_back(12,2,"05",disp.BLACK,disp.BLUE)
disp.putstr_back(15,2,"06",disp.BLACK,disp.RED)
disp.putstr_back(18,2,"07",disp.BLACK,disp.RED)

disp.putstr_back(0,4,"01",disp.BLACK,disp.YELLOW)
disp.putstr_back(3,4,"02",disp.BLACK,disp.YELLOW)
disp.putstr_back(6,4,"03",disp.BLACK,disp.YELLOW)
disp.putstr_back(9,4,"04",disp.BLACK,disp.YELLOW)
disp.putstr_back(12,4,"05",disp.BLACK,disp.YELLOW)
disp.putstr_back(15,4,"06",disp.BLACK,disp.YELLOW)
disp.putstr_back(18,4,"07",disp.BLACK,disp.YELLOW)
disp.putstr_back(0,6,"08",disp.BLACK,disp.YELLOW)
disp.putstr_back(3,6,"09",disp.BLACK,disp.YELLOW)
disp.putstr_back(6,6,"10",disp.BLACK,disp.YELLOW)
disp.putstr_back(9,6,"11",disp.BLACK,disp.YELLOW)
disp.putstr_back(12,6,"12",disp.BLACK,disp.YELLOW)
disp.putstr_back(15,6,"13",disp.BLACK,disp.YELLOW)
disp.putstr_back(18,6,"14",disp.BLACK,disp.YELLOW)
disp.putstr_back(0,8,"15",disp.BLACK,disp.YELLOW)
disp.putstr_back(3,8,"16",disp.BLACK,disp.YELLOW)
disp.putstr_back(6,8,"17",disp.BLACK,disp.YELLOW)
disp.putstr_back(9,8,"18",disp.BLACK,disp.YELLOW)
disp.putstr_back(12,8,"19",disp.BLACK,disp.YELLOW)
disp.putstr_back(15,8,"20",disp.BLACK,disp.YELLOW)
disp.putstr_back(18,8,"21",disp.BLACK,disp.YELLOW)
disp.putstr_back(0,10,"22",disp.BLACK,disp.YELLOW)
disp.putstr_back(3,10,"23",disp.BLACK,disp.YELLOW)
disp.putstr_back(6,10,"24",disp.BLACK,disp.YELLOW)
disp.putstr_back(9,10,"25",disp.BLACK,disp.YELLOW)
disp.putstr_back(12,10,"26",disp.BLACK,disp.YELLOW)
disp.putstr_back(15,10,"27",disp.BLACK,disp.YELLOW)
disp.putstr_back(18,10,"28",disp.BLACK,disp.YELLOW)
disp.putstr_back(0,12,"29",disp.BLACK,disp.YELLOW)
disp.putstr_back(3,12,"30",disp.BLACK,disp.YELLOW)

disp.put_hline(0,13,121,disp.BLACK)
disp.put_hline(0,31,121,disp.BLACK)
disp.put_hline(0,49,121,disp.BLACK)
disp.put_hline(0,67,121,disp.BLACK)
disp.put_hline(0,85,121,disp.BLACK)
disp.put_hline(0,103,121,disp.BLACK)
disp.put_hline(0,121,121,disp.BLACK)
disp.put_vline(15,13,108,disp.BLACK)
disp.put_vline(33,13,108,disp.BLACK)
disp.put_vline(51,13,108,disp.BLACK)
disp.put_vline(69,13,108,disp.BLACK)
disp.put_vline(87,13,108,disp.BLACK)
disp.put_vline(105,13,108,disp.BLACK)
设置初始日期，选中星期：
rtc = pyb.RTC()
rtc.datetime((2014, 5, 1, 4, 13, 0, 0, 0))
a=rtc.datetime()
t1=a[0]
t2=a[1]
t3=a[2]
t4=a[3]
t5=a[4]
t6=a[5]
t7=a[6]
x=(a[3]-1)%7*3
y=((a[3]-1)//7+2)*2
if a[3]>=10:
        disp.putstr_back(x,y,str(a[3]),disp.WHITE,disp.WHITE)
        disp.putstr_back(x,y,str(a[3]),disp.BLACK,disp.PINK)
else:
        disp.putstr_back(x,y,'0'+str(a[3]),disp.WHITE,disp.WHITE)
        disp.putstr_back(x,y,'0'+str(a[3]),disp.BLACK,disp.PINK)
显示日期，并时刻更新：
s1='year:'+str(t1)
s2='month:'+str(t2)
s3='day:'+str(t3)
s4='weekday:'+str(t4)
if t6>=10:
        s5='time:'+str(t5)+':'+str(t6)+':'+str(t7)
else:
        s5='time:'+str(t5)+': '+str(t6)+':'+str(t7)
disp.putstr(0,14,s1,disp.BLACK)
disp.putstr(11,14,s2,disp.BLACK)
disp.putstr(0,15,s3,disp.BLACK)
disp.putstr(11,15,s4,disp.BLACK)
disp.putstr(0,16,s5,disp.BLACK)
while True:
        print(rtc.datetime())
        a=rtc.datetime()

        if t1!=a[0]:
                disp.putstr(0,14,s1,disp.WHITE)
                t1=a[0]
                s1='year:'+str(a[0])
                disp.putstr(0,14,s1,disp.BLACK)
        if t2!=a[1]:
                disp.putstr(11,14,s2,disp.WHITE)
                t2=a[1]
                s2='month:'+str(a[1])
                disp.putstr(11,14,s2,disp.BLACK)
        if t3!=a[2]:
                disp.putstr(0,15,s3,disp.WHITE)
                t3=a[2]
                s3='day:'+str(a[2])
                disp.putstr(0,15,s3,disp.BLACK)
        if t4!=a[3]:
                disp.putstr(11,15,s4,disp.WHITE)
                t4=a[3]
                s4='weekday:'+str(a[3])
                disp.putstr(11,15,s4,disp.BLACK)
        if t5!=a[4]:
                if t5>=10:
                        disp.putstr(5,16,str(t5),disp.WHITE)
                else:
                        disp.putstr(5,16,' '+str(t5),disp.WHITE)
                t5=a[4]
                if t5>=10:
                        disp.putstr(5,16,str(a[4]),disp.BLACK)
                else:
                        disp.putstr(5,16,' '+str(a[4]),disp.BLACK)
        if t6!=a[5]:
                if t6>=10:
                        disp.putstr(8,16,str(t6),disp.WHITE)
                else:
                        disp.putstr(8,16,' '+str(t6),disp.WHITE)
                t6=a[5]
                if t6>=10:
                        disp.putstr(8,16,str(a[5]),disp.BLACK)
                else:
                        disp.putstr(8,16,' '+str(a[5]),disp.BLACK)
        if t7!=a[6]:
                disp.putstr(11,16,str(t7),disp.WHITE)
                t7=a[6]
                disp.putstr(11,16,str(a[6]),disp.BLACK)

1.11.3. 实验现象

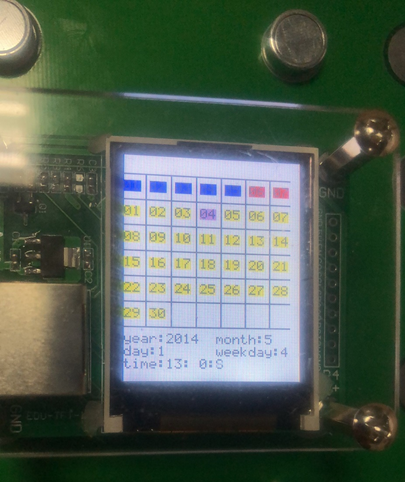

加载程序。显示电子日历。
